Directional Control Valve DRV

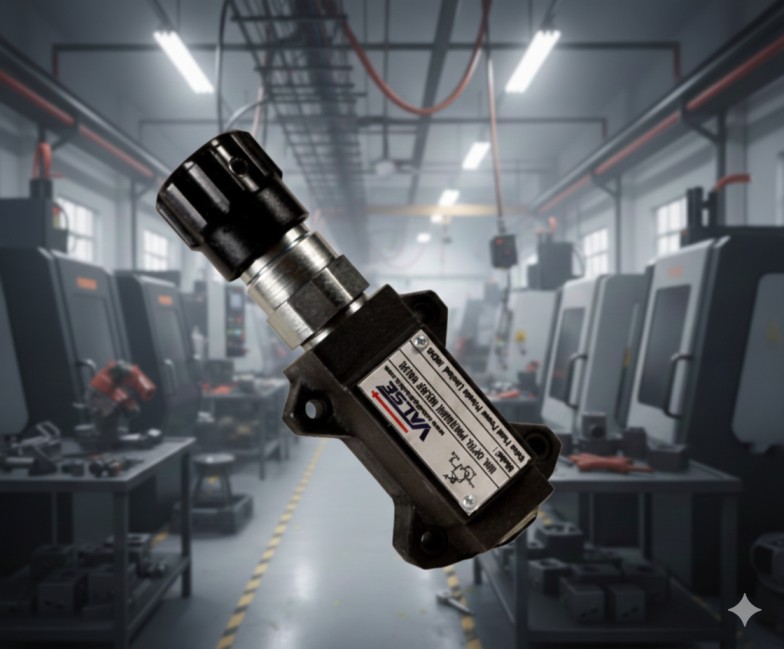

Direct Optd. Pr. relief Valve as a safety switch in the hydraulic switch designed with Guided poppet & Cushion arrangement for greater stability and noise control
Available in two sizes, 06, 10 with three mounting styles Threaded cartridge, Threaded port body, Manifold mounting body
Six pressure ranges: adjustable up to 25, 50, 100, 200, 315 & 400
Two options for pressure adjustment with set screw and Lock nut. With hand knob.
TECHNICAL SPECIFICATIONS
| 1 | Construction | Direct acting, Guided poppet type. |
| 2 | Mounting style | Threaded cartridge, Threaded port body, Sub plate mounting body. |
| 3 | Interface | Factory standard |
| 4 | Mounting position | Optional |
| 5 | Flow Direction | From P to T |
| 6 | Operating pressure for Port P | 400 bar. (Standard model) |
| 7 | Operating pressure for Port T | 315 bar. |
| 8 | Pressure Setting Ranges | Up to 25, 50, 100, 200, 315, 400 bar. |
| 9 | Mass | Refer Individual Table. |
| 10 | Performance | Refer Graph. |
