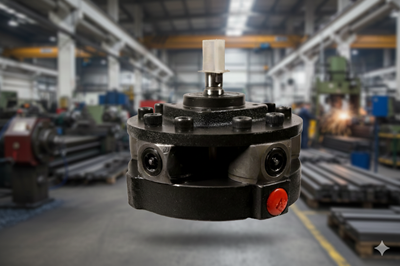

Radial Piston Pump
Radial Piston Pumps works on the principle of reciprocating motion of the plunger in the cylinder. Oil-immersed type, open execution, face mounting, fixed delivery, valve-controlled, bi-directional rotation of shaft.
Available with 3, 5 & 7 Plungers
Single & double delivery with row of elements.
Rugged, with all parts renewable by replacement
TECHNICAL SPECIFICATIONS
| 1 | Designation | 1R basic radial piston pump group. |
| 2 | Design | Radial piston, valve controlled. |
| 3 | No. of pistons | 3, 5 or 7; depending upon flow requirement. |
| 4 | Mounting | Face mounting. |
| 5 | Interface | Factory standard. |
| 6 | Direction of rotation | 1R Can be run in either direction. |
| 7 | 1RE | Depends upon direction of rotation of low pressure pump. |
| 8 | Connection | Suction Sucks oil directly from tank, no suction port is provided. |
| 9 | Delivery | G 3/8female. |
| 10 | Speed range | 500 to 2000rpm. |
| 11 | Hydraulic medium | Mineral oil. |
| 12 | Viscosity range. | 10 to 100 cSt. Optimum |
| 13 | Viscosity range. | 16 to 32 cSt. |
| 14 | Temperature range | -10 °C to +80°C. |
| 15 | (Do not exceed viscosity limits at extreme temperatures for efficient running of the pump) Fluid cleanliness requirement As per ISO Code 16/13. |
